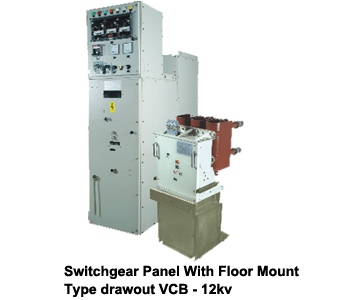

| Salient Features of Switchgear Panel |
|
Fully compartmentalized construction with IP4x degree of protection externally and IP2X between compartments. |
| |
Emphasis on operator's safety : |
| |
|
When the door is in closed condition manual operations like ON, OFF, manual spring charging, Rack-in & Rack-Out can be carried out. |
| |
|
Foolproof mechanical interlock to prevent rack-in and rack-out of closed breaker. |
| |
|
Independent exhaust vent for all HT compartments. |
| |
|
Multiple guides for safe, sure and enduring self aligning power contacts. |
| |
|
Live parts are covered by automatic shutters when breaker is racked out. |
| |
|
Bus & line earthing switch (Optional). |
|
Separately lockable shutters for bus and cable side. |
|
Access to cable terminals from rear. |
|
Guaranteed voltage withstand without conductor insulation . |
|
Top lifting arrangement for panel. |
|
Conforms to IEC Standard. |
|
The breaker cannot be moved from test to service position unless the breaker compartment door is closed |
|
The breaker cannot be moved from test to service position or vice versa with breaker in closed condition. |
|
The breaker cannot be closed in-between test and service position. |
|
The breaker compartment door cannot be opened when the breaker is in service position or in between service & test positions. |
|
| |

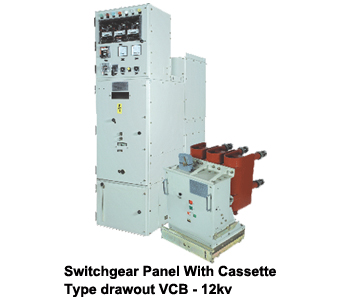

| Salient Features of 12kv Vacuum Circuit Breaker |
|
A Compact, Light, Weight construction, Optimized to give minimum Weight to KA ratio. |
|
Superior mechanical endurance limit Maintenance required only after 10,000 operations. |
|
|
A Unique 'U' shaped insulation barrier housing for the Vaccum interrupters, imparting maximum mechanical strength against electrodynamic forces and provides most effective phase to phase and phase to earth segregation. |
|
A screw type racking arrangement for easy insertion and withdrawl of the Circuit Breaker renders perfect contact pressure, independent of operator's Force |
|
A simple motor charged spring operating mechanism noted for its high performance reliability. |
|
A versatile mechanism capable of operating Vacuum Interrupters of any type . Hence, dependence on single source of Vacuum interrputers eliminated. |
|
Trip free mechanism suitable for repeated auto reclosing duty. |
|
Spring Charging time of less than 10 seconds. |
|
Totally enclosed construction for spring charging motor. |
|
Easy visual check of contact erosion. |
|
| |
 |
Operating Mechanism |
| Type |
Motor & Manually charged |
| Charging Time of motorised mechanism |
Less than 10 Sec. |
| Coil voltage* |
24/30/48/110/220 V DC |
| Trip / closed coil power |
350 Watts |
| Motor Operating voltage |
230 V AC / DC |
| Power required by charging motor |
80 Watts |
| Type of closing latch |
Designed to close & latch |
| Auxiliary switch |
Up to 8 NO + 8 NC |
| Mechanical Operating Counter |
5 digit non resetting type |
* Different voltages as per customer requirement. |
|
|
| |

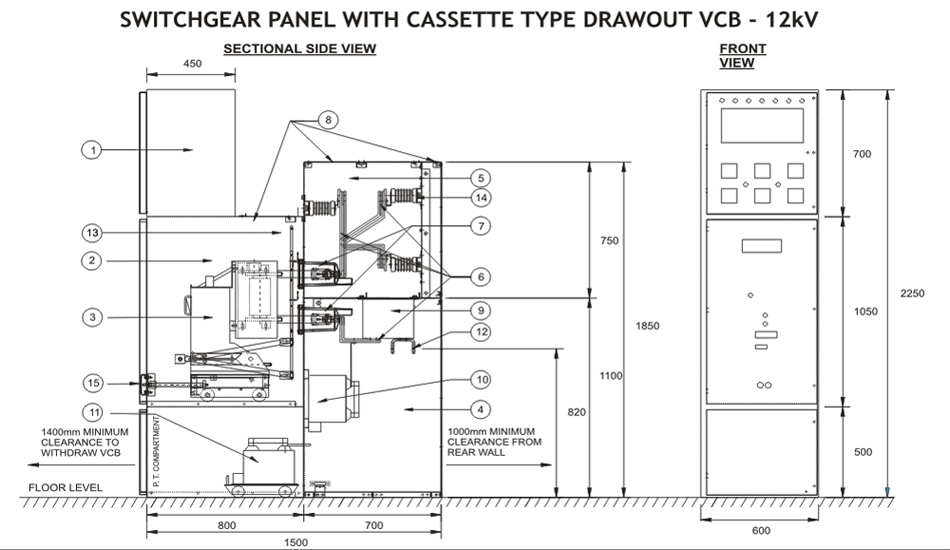

GENERAL ARRANGEMENT |
| |
|
| |
| |
Sr. No. |
Description |
1 |
L.T. Compartment |
2 |
C.B. Compartment |
3 |
Vacuum Circuit Breaker |
4 |
Cable Compartment |
5 |
Bus Bar Compartment |
|
Sr. No. |
Description |
6 |
Bus Bars |
7 |
Epoxy Bushing |
8 |
Explosion Flaps |
9 |
C.T. |
10 |
Fix Type P.T. |
|
Sr. No. |
Description |
11 |
Draw Out P.T. |
12 |
Cable Terminal |
13 |
Shutters |
14 |
Stud Insulator |
15 |
Drive Box |
|
|
|
| |
|
| |
VCB Technical Data |
Switchgear Panel Data |
|
Type |
ASIVB - 12 |
| Operating Method |
|
Manual / Motor Spring ChargeType |
| Rated Voltage |
KV |
12 |
| No. of Poles |
Nos |
3 |
| Frequency |
Hz |
50 / 60 |
| Rated Current |
Amp |
630 / 1250 / 2000 |
| Short circuit Current |
KA |
13.1 / 20 /25 |
| Making Current |
KAP |
33 / 50 / 62.5 |
| Duration of short time current |
Sec. |
3 |
| Insulation Level Impulse Power Frequency rms |
KVp
KV |
75 / 95
28 |
| Contact travel |
mm |
7 (+1, -1) |
| Opening Time |
Cycles |
Less than 2 cycles |
| Interrupting Time |
Cycles |
Less than 3 cycles |
| Closing Time |
Cycles |
Less than 3 cycles |
| Duty cycle |
Cycles |
0-0.3 sec. -CO-3 min-CO |
| Applicable Standard |
|
IEC 62271-100, IS 13118 |
|
Specification |
Values |
| Installation & Type |
Indoor Metal Clad |
| Insertion of Circuit Breaker |
Horizontal draw-out and horizontal isolation |
| Position of CB in the panel |
Service & Test |
| Secondary contacts |
Manually engaged 16 /32 way plug & socket |
| Degree of Protection |
IP4X (Enclosure)
IP2X (Internal) |
| Rating of Bus Bar |
1250 / 1600 / 2000 A |
| Space for CTs |
1 Set CT in Cable Compartment |
| Space for PT |
1. Withdrawable bus & cable PT. Top of Panel / CB Compartment (Optional)
2. Fix type bus / cable PT. In cable Compartment (Optional) |
| Space heaters |
230 V AC, 100 W / 200 W strip Type (Optional) |
| Cable Termination Height |
820 mm From Bottom |
| Applicable Standard |
IEC 62271-200, IS 3427 |
|
|
| |
|
|
| |
| |
